10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System

Product Categories
Guangzhou CVR Pro-Audio Co., Ltd
Contact Now

10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System

  • 1
  • 2
  • 3

Brand Name : CVR

Model Number : W-210B & W-210BP(Active)

Certification : CE

Place of Origin : Guang Zhou , China

MOQ : 2 boxes

Price : $100 to $10000

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 5000 boxes each month

Delivery Time : 10 to 15 days after receive payment

Packaging Details : carton box package or flight case package

Model : W-210B & W-210BP(Active)

power : 900W/8ohm (W-210BP)

Frequency Response : 60Hz-20KHz±3dB

Size : 10" neodymium woofers

Other functions : Built-in crossover(W-210BP)

Enclosure : Birch plywood

Amplifier type : Switching power amp, class D circuit

Contact Now

10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System



Quick Details:



  • Place of Origin : Guangzhou , China
  • Brand name : CVR
  • Model Number: W-210B & W-210BP(Active)
  • System: full range system
  • Power rating : 900W/8ohm (W-210BP)
  • Color: Black
  • Type: Professional Loudspeaker
  • Service Type: OEM or ODM
  • Warranty : one year



W-210B&W-210BP is a line array system which is made of two 10"neodymium woofers, one 3"titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required.



Model  W-210B & W-210BP(Active)
Type  Line array system
Frequency Response  60Hz-20KHz±3dB
Power handling  LF 700W(RMS)1400W(PEAK)
  HF 100W(RMS)200W(PEAK)
Power amp  900W/8ohm (W-210BP)
Amplifier type  Switching power amp, class D circuit
Other functions  Built-in crossover(W-210BP)
Sensitivity LF 101dB(1W-1M)
  HF 109dB(1W-1M)
Max-S.P.L  LF 127dB(PEAK/1M)
  HF 129dB(PEAK/1M)
LF section  2×10"(260mm) neodymium woofer
  75mm(3in)coil
Nominal impedance          8 ohm
HF section  1×3" neodymium compression driver
  with 75mm titanium diaphragm
Nominal impedance 8 ohm
Output section  2-channel
Dispersion pattern  110°H×10°V
Finish Water-proof,wear-resistant textured
  black paint
Array design  Arrays of less than 3×W-210B will
  provide poor dispersion control and
  are neither recommended nor supported
Speaker cables  LF 1(+)1(-) HF 2(+)2(-)
Rigging system  Please refer to the W-210B user's
  manual before any operation
Input connectors  2×NL4MP speakon
Recommend crossover  LF  70Hz-2KHz
  HF 2KHz-20KHz
Dimensions  737 x 288 x 415mm(W x H x D)
Package dimensions   810 x 360 x 480mm/0.14cbm
Enclosure  Birch plywood
Net weight  31kg (W-210B) 34kg(W-210BP)
Gross weight  31kg (W-210B)35kg (W-210BP)

About us :



      Guangzhou CVR Pro-Audio Co., Ltd is a manufacturer   specialized in producing  professional  audio  equipment    with  an  own  brand “CVR ” since  2005.  Our   5,000  square   meters  plant  has  R&D,  sales  and demonstration departments. Fully equipped demonstration facilities are available with knowledgeable staffs.
      CVR PRO AUDIO can easily provide you a wide range of professional sound gear like:PA speaker, indoor and outdoor line array speaker, subwoofer,  floor  monitor,  Power amplifier and speaker  management  system. From  the smallest conference room to the largest stadium.
 CVR is the brand we set for global market,carrying great responsibility to satisfy our customers in every possible  aspect as promise. The heart and soul of CVR has to be our attempt to strengthen our quality against the best in the  world.
     Our  goal is to provide the best equipment with the best  services. We have  not  deviated from this  position  since  we  began  and  will  do  it consistently.

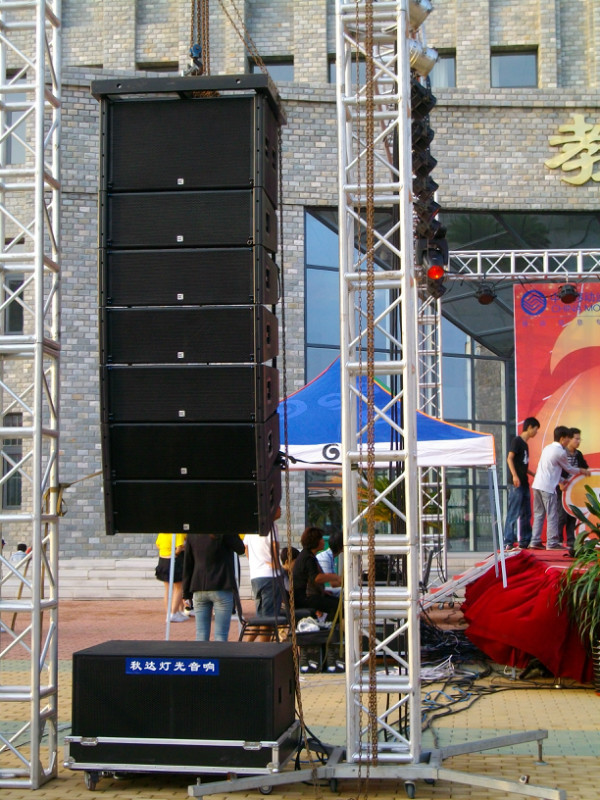

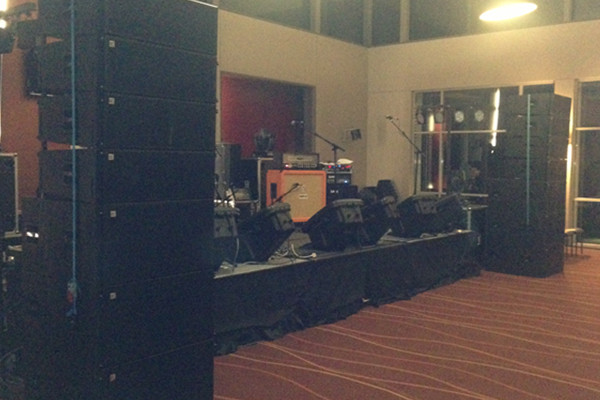

Project case:





     10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System



10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System

10 Inch Big Outdoor Line Array Speakers Sound And Light Truss System





CVR exclusive area :



  • United States, Canada, Australia, Spain, Nigeria, Ghana, Japan, Korea, Cambodia, Fiji, Uganda, Malaysia, Peru.
  • USA Address:2012 TRANQUILITY LANE,LEAGUE CITY, TX 77573,USA
  • Japan Address: 329 AOKI YUASA-TOWN ARIDA-GUN, WAKAYAMA-prefecture
  • Korea Address:408,Onnuriplaza,128-2,Goean-dong,Sosa-gu,Bucheon-si,Kyungki
  • Ghana Address:No.9,5th Circular road,Labone Accra
  • Uganda Address: Plot 1175A Mukalazi Road, Bukoto Kampala Uganda. P.O BOX 23217Kampala
  • Nigeria Address: T. I. REWARD BLOCK, ELECTRONICS MARKET ONITSHA, ANAMBRA STATE.



CVR PRO AUDIO aims to :



  • Become your most trusted and reliable manufactory
  • Provide high quality pro sound equipment at realistic prices
  • Provide outstanding designs together with delicate finished
  • Provide meticulous and considerate service for clients
  • See more at www.cvr-audio.com
